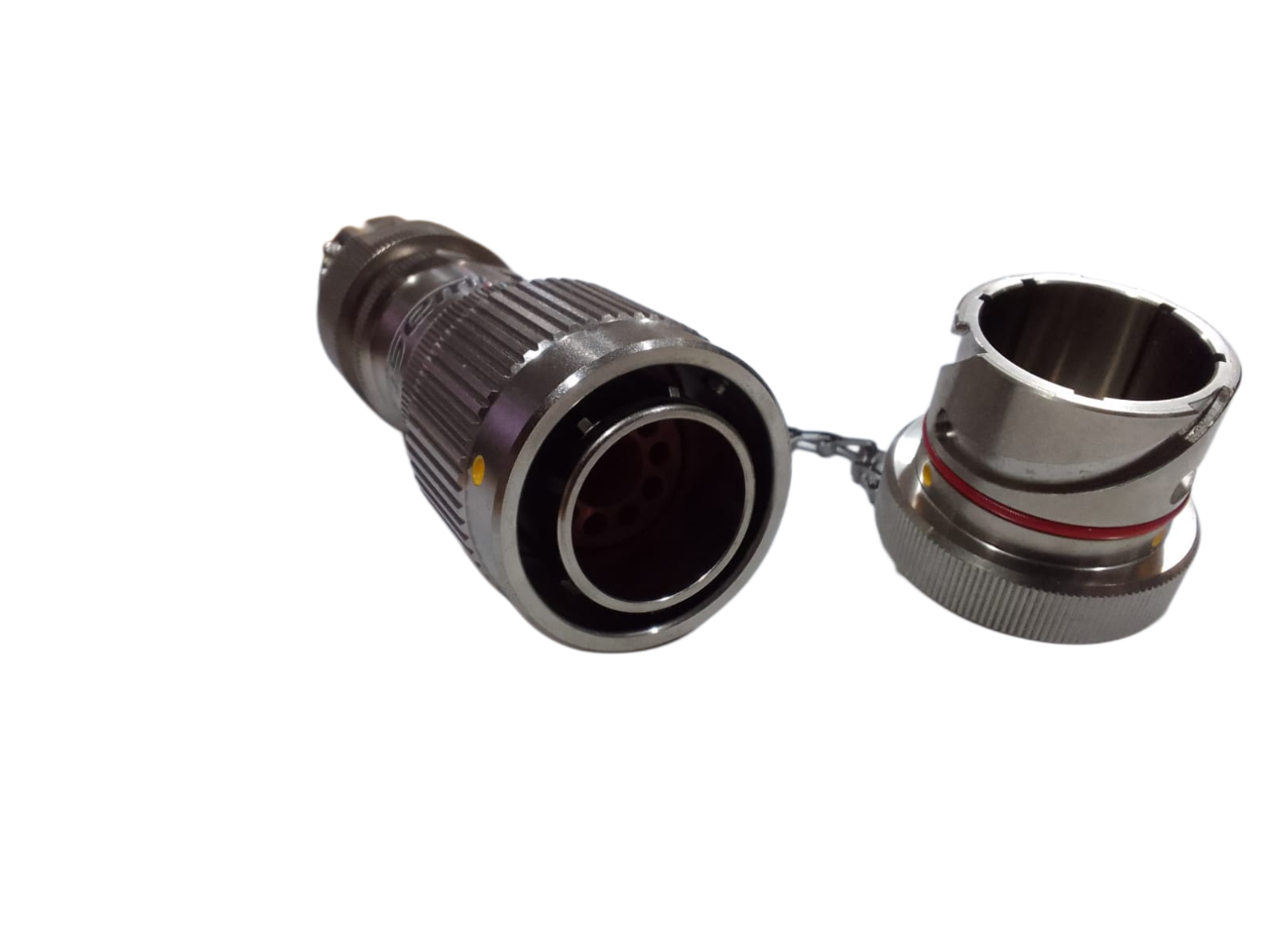

The AJSYGC-EX4P10P(CE) ATEX IECEx Explosion-Proof Plug and Connector is a specialized electrical component designed for hazardous environments where explosive gases, dust, or vapors are present. Certified under ATEX (European standards) and IECEx (International standards), these plugs and connectors ensure safe and reliable power and signal transmission in industries such as oil and gas, petrochemicals, mining, and manufacturing. Built with rugged, corrosion-resistant materials, they can withstand extreme temperatures, mechanical stress, and harsh environmental conditions. ✔ ATEX & IECEx Certified – Ensures compliance with global explosion-proof safety standards.
✔ Rugged & Corrosion-Resistant – Made from high-quality materials like stainless steel, etc. for durability.
✔ Wide Operating Temperature Range – Can withstand extreme hot and cold conditions.
✔ IP66/IP67 Rated – Provides excellent protection against dust, water, and harsh environmental factors.
✔ Easy & Secure Connection – Designed with a reliable locking mechanism for safety and stability.
✔ Resistant to Mechanical Stress – Can endure high-impact and vibration-prone environments.
Technical Specifications
1. Rated Current, Voltage
- Contact diameter: 1.5mm
- Rated operating voltage: 60V AC/DC
- Rated operating current: 6A
2. Applicable Cable Wiring Range
- Cable clamping range: φ9.0mm~φ16.0mm
3. Contact Resistance
- Contact resistance: <2.5MΩ (normal state) <5MΩ (after mechanical life)
4. Withstand Voltage
- Withstand voltage: 1000V
- Leakage current: 10mA
5. Minimum Clearance & Minimum Creepage Distance (Refer to IEC/EN60079-7:2015)
- Minimum creepage distance: >2.6mm (material grade: II)
- Minimum clearance: >2.1mm
6. Other Technical Requirements
Parameters |
Specifications |
Housing |
Aluminum alloy 2A12-T4 (surface treatment: nickel plating thickness0.05mm) |
Cable introduction structure |
multi-layer cable gland and clamping double structure are adopted. The clamping of the cable is separately adopted by the upper and lower clamping plates with multiple ribs. |
Insulation resistance |
under normal state: ≥2000MΩ After constant damp heat: ≥20MΩ |
Rubber seal |
flame retardant silicone rubber |
Wiring method |
crimping type four or six |
Mechanical life |
1000 times |
7. Working Environment Conditions
Parameters |
Specifications |
Ambient temperature |
-55°C~+60°C |
Relative humidity |
90% to 95% |
Temperature |
40°C ± 2°C |
Vibration |
vibration frequency 10Hz -55Hz |
Displacement Amplitude |
0.75 mm |
Collision |
10-40 times / min |
Acceleration |
250m / S2 |
Impact |
Ability 7.0J |
Height |
0.7 mm |
Protection level |
IP67 |
