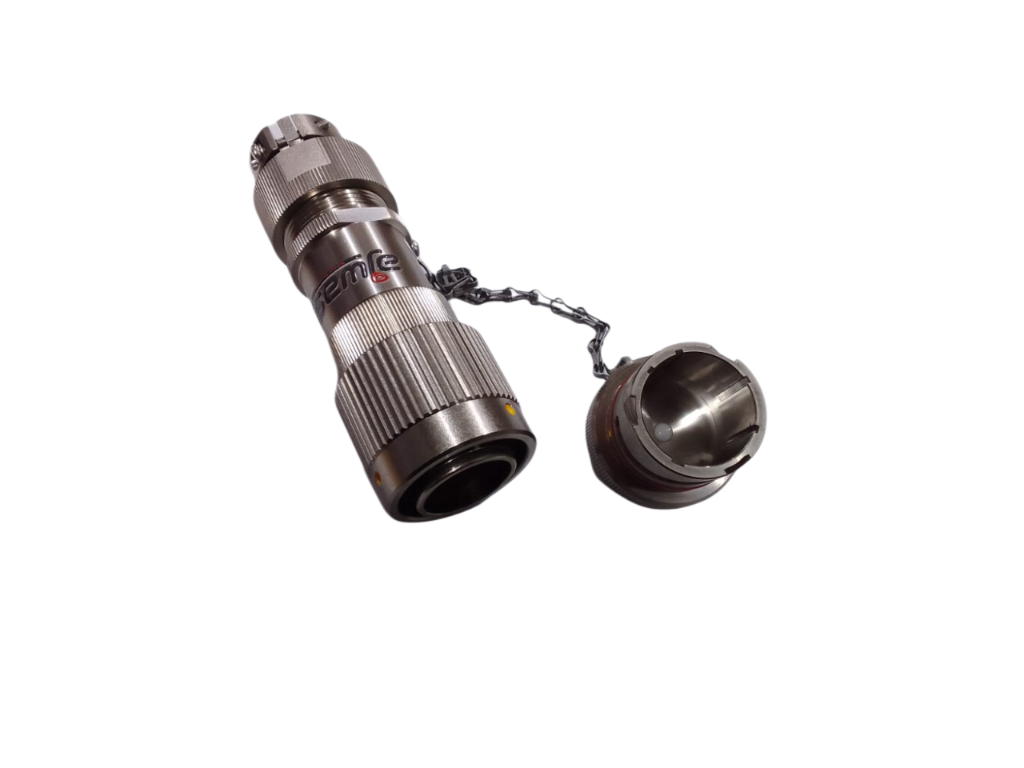

The AJSYGCEX4S10R-M6(CE) ATEX IECEx Explosion-Proof Socket is a high-performance electrical component designed for use in hazardous environments where explosive gases, dust, or vapors are present. Certified under ATEX (European standards) and IECEx (International standards), these sockets provide safe and reliable power connections in oil and gas, petrochemicals, mining, and manufacturing industries. Built with rugged, corrosion-resistant materials, they withstand extreme temperatures, mechanical stress, and harsh environmental conditions. ✔ ATEX & IECEx Certified – Compliant with international explosion-proof safety standards.Main Features:
✔ Rugged & Corrosion-Resistant – Constructed from high-quality materials like stainless steel or aluminum for longevity.
✔ Wide Operating Temperature Range – Designed to perform in extreme hot and cold environments.
✔ IP66/IP67 Rated – Provides excellent protection against dust, water, and harsh environmental factors.
✔ Safe & Secure Connection – Equipped with a reliable locking mechanism for enhanced safety and stability.
✔ Resistant to Mechanical Stress – Built to withstand high impact and vibration-prone conditions.
Technical Specifications
1. Rated Current, Voltage
- Contact diameter: 1.5mm
- Rated operating voltage: 60V AC/DC
- Rated operating current: 6A
2. Applicable Cable Wiring Range
- Cable clamping range: φ9.0mm～φ16.0mm
3. Contact Resistance
- Contact resistance: <2.5MΩ (normal state) <5MΩ (after mechanical life)
4. Withstand Voltage
- Withstand voltage: 1000V
- Leakage current: 10mA
5. Minimum Clearance & Minimum Creepage Distance (Refer to IEC/EN60079-7:2015)
- Minimum creepage distance: >2.6mm (material grade: II)
- Minimum clearance: >2.1mm
6. Other Technical Requirements
|
Parameters |
Specifications |
|
Housing |
Aluminum alloy 2A12-T4 (surface treatment: nickel plating thickness0.05mm) |
|
Cable introduction structure |
multi-layer cable gland and clamping double structure are adopted. The clamping of the cable is separately adopted by the upper and lower clamping plates with multiple ribs. |
|
Insulation resistance |
under normal state: ≥2000MΩ After constant damp heat: ≥20MΩ |
|
Rubber seal |
flame retardant silicone rubber |
|
Wiring method |
crimping type four or six |
|
Mechanical life |
1000 times |
7. Working Environment Conditions
|
Parameters |
Specifications |
|
Ambient temperature |
-55°C～+60°C |
|
Relative humidity |
90% to 95% |
|
Temperature |
40°C ± 2°C |
|
Vibration |
vibration frequency 10Hz -55Hz |
|
Displacement Amplitude |
0.75 mm |
|
Collision |
10-40 times / min |
|
Acceleration |
250m / S2 |
|
Impact |
Ability 7.0J |
|
Height |
0.7 mm |
|
Protection level |
IP67 |
